Heavy-Duty Hatz Engines in Melbourne
We stock a huge range of Hatz engines & Parts with Australia- wide shipments
We Empower businesses all over Australia by providing diesel engine solutions that last….
The team at Renseal Australia proudly supply Hatz engines & parts. With our in-depth knowledge and dedication in delivering the highest customer service. We are proud to provide Melbourne & Australia wide businesses the best Hatz Diesel Engines. With Renseals wide range of Hatz engines to choose from we ensure you have the highest quality diesel-powered engines available on the market and stock a range of spare parts to help keep your engines running for even longer.

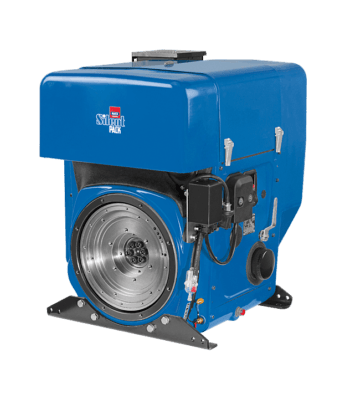

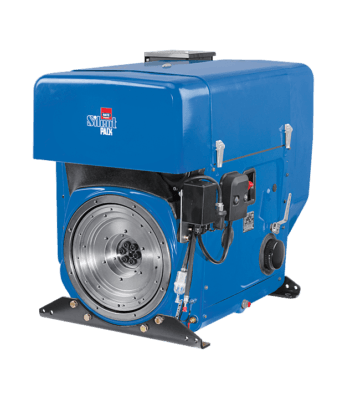

We supply engines from one to four cylinders with direct and auto-injection options available. If you need low vibration models or silent packs, we can help you choose the perfect Hatz model.
View Our product range of Hatz Engine
Hatz knows engines and has manufactured over one million engines over 75-plus years
Hatz 1B20 and 1B30 Engines: Melbourne Supply and Spare Parts

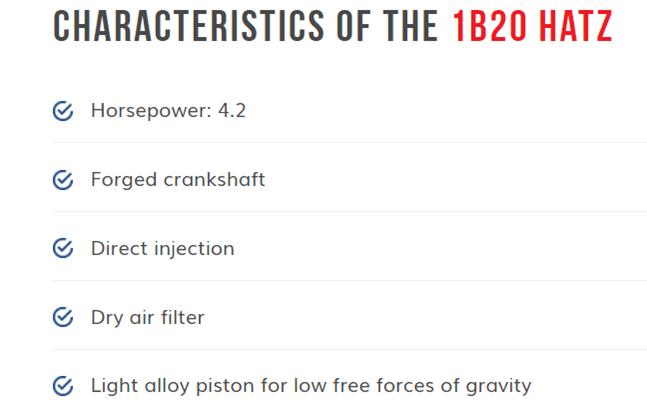

The 1B20 Hatz engine is a single-cylinder, air-cooled, four-stroke diesel engine suited to compact and weight-sensitive applications. It has a 69.0 mm bore and 65.0 mm stroke, giving a 243 cc displacement, a maximum power of 3.5 kW, and a maximum torque of 10.5 Nm. Recoil or electric starter options (12V or 24V) offer flexibility across machine configurations.
Typical applications include vibration compaction plates, portable pump sets, small generators, agricultural machinery, and refrigeration compressor drives.

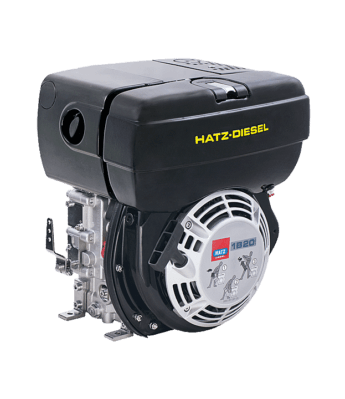

Hatz 1B20 Engine
Renseal supplies both the 1B20 Hatz engine and 1B30 Hatz engine to businesses across Melbourne and throughout Australia, with spare parts and expert advice available to support your application. Whether you need a compact workhorse for light equipment or a unit with greater output, both B-series models represent Hatz's well-regarded single-cylinder diesel range. Call the Renseal team on 03 9794 5711 or submit an enquiry to confirm current availability and lead times.

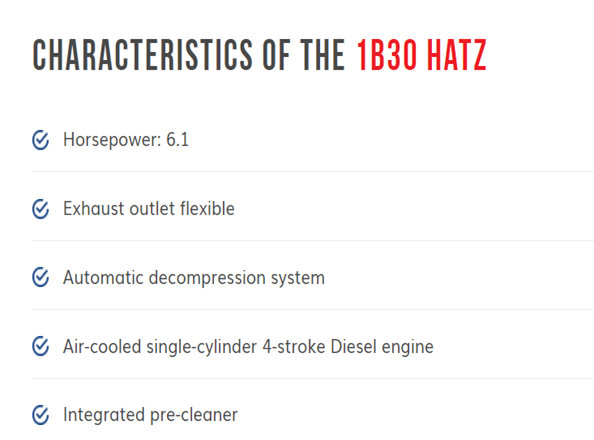

Hatz 1B30 Engine
The 1B30 Hatz engine shares the same single-cylinder, air-cooled architecture as the 1B20 while delivering greater performance. An 80.0 mm bore and 69.0 mm stroke give a 347 cc displacement, with power ranging from 2.6 kW at 1,500 rpm up to 5.4 kW at 3,600 rpm. Recoil or electric starter options are available at 12V or 24V.
Common applications include mid-range construction equipment, pump set drives for agricultural and irrigation operations, remote power generation, and light industrial machinery across mining and resources sectors.
1B20 Hatz Engine vs 1B30: Which Model Suits Your Application?
Both models share a compact, air-cooled, direct-injection design. The 1B20, at 243 cc, suits applications where weight, footprint, and lower power output are the primary considerations. The 1B30, at 347 cc, is the better fit where a higher power envelope and greater torque are needed without moving to a two-cylinder unit. Renseal can help confirm which model aligns with your load requirements. Call 03 9794 5711 for a discussion.
Frequently Asked Questions About 1B20 Hatz Engine
What Are the Key Specs of the Hatz 1B20 Engine?
The Hatz 1B20 is a 243 cc, single-cylinder, air-cooled diesel engine producing 3.5 kW and 10.5 Nm of torque, with recoil or electric starter options.
Are Spare Parts Available for the 1B20 Hatz Engine and 1B30 in Australia?
Renseal stocks spare parts for Hatz engines with nationwide shipping. Contact Renseal to check availability.
What Is the Displacement and Power Output of the Hatz 1B30 Engine?
The Hatz 1B30 is a 347 cc single-cylinder engine with an 80 mm bore and 69 mm stroke, producing up to 5.4 kW.
Can Renseal Supply Hatz B-Series Engines and Parts Outside Melbourne?
Yes. Renseal is a family-owned business supplying Australia-wide. Call 03 9794 5711 for further enquiries.
Get the Right Hatz Engine for Your Application
Call Renseal today on 03 9794 5711 to secure your 1B20 Hatz engine for Melbourne.
Learn More About our Hatz engines to better understand which engines could fulfill your needs chat to the experts at Renseal Today
Reliable Diesel Engine Selection
With service and spare parts available anywhere in Australia, a Hatz Diesel engine is a great choice. With a focus on low fuel consumption and easy cold starting, you can always rely on a Hatz engine when you need it most.
